BELTDRAULIC™ CLD
Beltdraulic™ Common Lifting Device (CLD) is an electronic-free, manually operated, compact lift purpose built for hoisting critical components onboard the A/MC-130J or similar aircraft.
200lbs
Maximum Load
11’ - 10"
Maximum Lift Height
72" x 32" x 26"
Nominal Folded Dimension
215lbs
CLD Weight

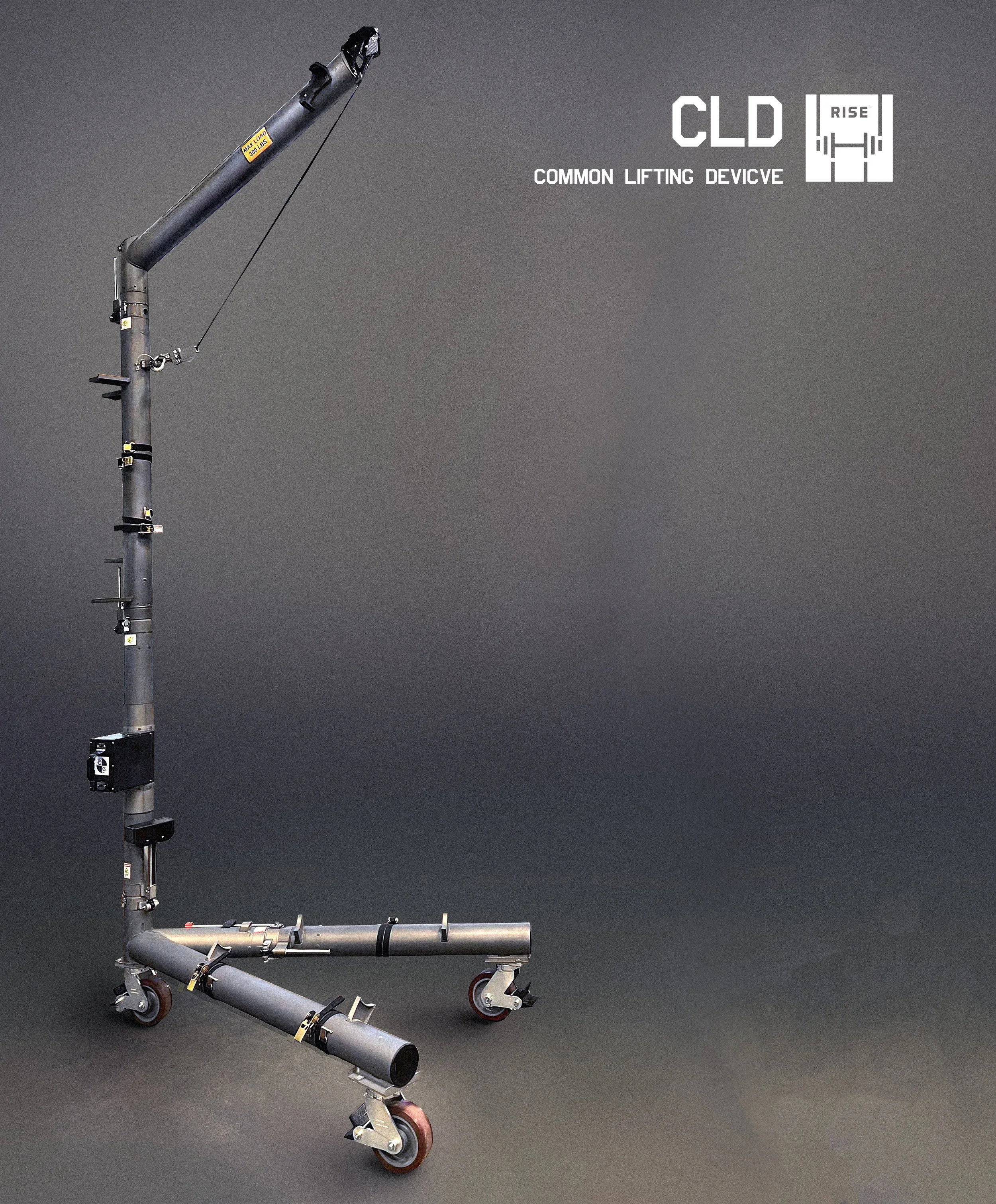

The CLD consists chiefly of a multi-tube foldable erector set, internally routed RISE® drive unit, and swivel-hook attachment point. Made to easily fit into a 6'X3'X3" box, the CLD boasts a weight lighter than its lifting capacity. Ideal for handling line replaceable units (LRU), it operates safely even in challenging conditions: while wearing MOPP4 gear, on terrains with up to a 5% incline, between temperatures of -30°C to 60°C (-22°F to 140°F), and in wind speeds up to 25 knots. Built-in safety features ensure payloads remain secure, preventing unexpected drops.
